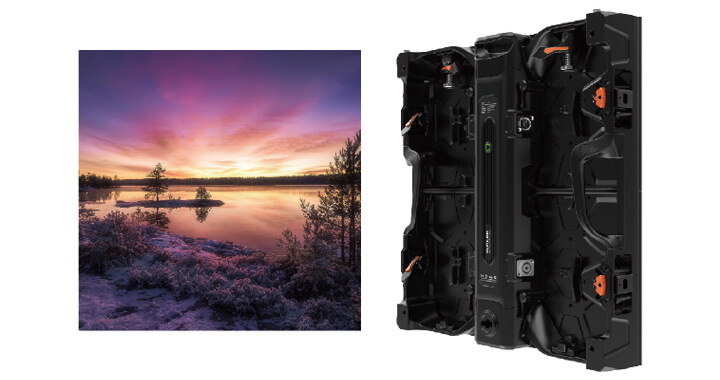

DB 2.6

Caractéristiques techniques

Pixel pitch : 2.6 mm
Physical density : 147,456 pixels/m2
Led Arangement : 3 IN 1 SMD
Cabinet Resolution : 192x192 pixels
Cabinet dimension : 500 x 500 75.5 mm (19.69x19.69x2.97in)
Cabinet weight : 7.1 kg (15.65 lb)
Brightness : 1600 nits
Max power consumption : 125w/panel
Ave Power consumption : 42w/panel
Viewing angle : 160°/160°
Operating power sources : 100-240V AC 50-60Hz
Operating temperature : -10°C +45°C
Refresh rate(valued version) : < 3,840Hz (Configurable)
Ip rating : IP30
Max rigging : 18 panels
Verification : CE, ETL, FCC, RoHS
