VX4


Media serveur le plus performant du marché jusqu’a quatre flux 4K i/o

xr

Je souhaite un devis de location

Caractéristiques techniques


The vx 4 has been engineered to play back video at higher quality, smoothness and resolution than ever before.

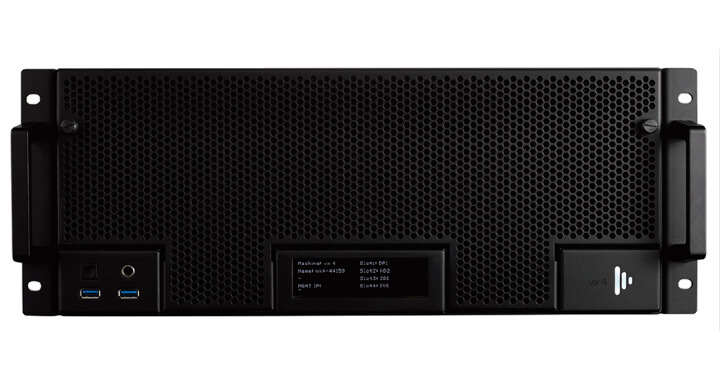

VX4

Hardware specifications

Voltage: 115-240V, 50-60Hz
Power Consumption: 900VA @ 240V, 50Hz (max)
Operating System: Windows Enterprise SAC
CPU: Dual Intel® Xeon® Gold 3.2Ghz

Memory: 96GB DDR4 RAM
Environmental Tolerances:
Temperature: 5-35°C (40°-95°F)
Humidity: 5%-95% (non-condensing)
Altitude: 0-8850 ft (0-2700m)
Mounting System: 4U 19” rack mount

Audio: RME Professional
OS: 2x 128GB SSD
Storage: Up to 4 NVMe Drives
4x 2TB Removable NVMe SSD (default)

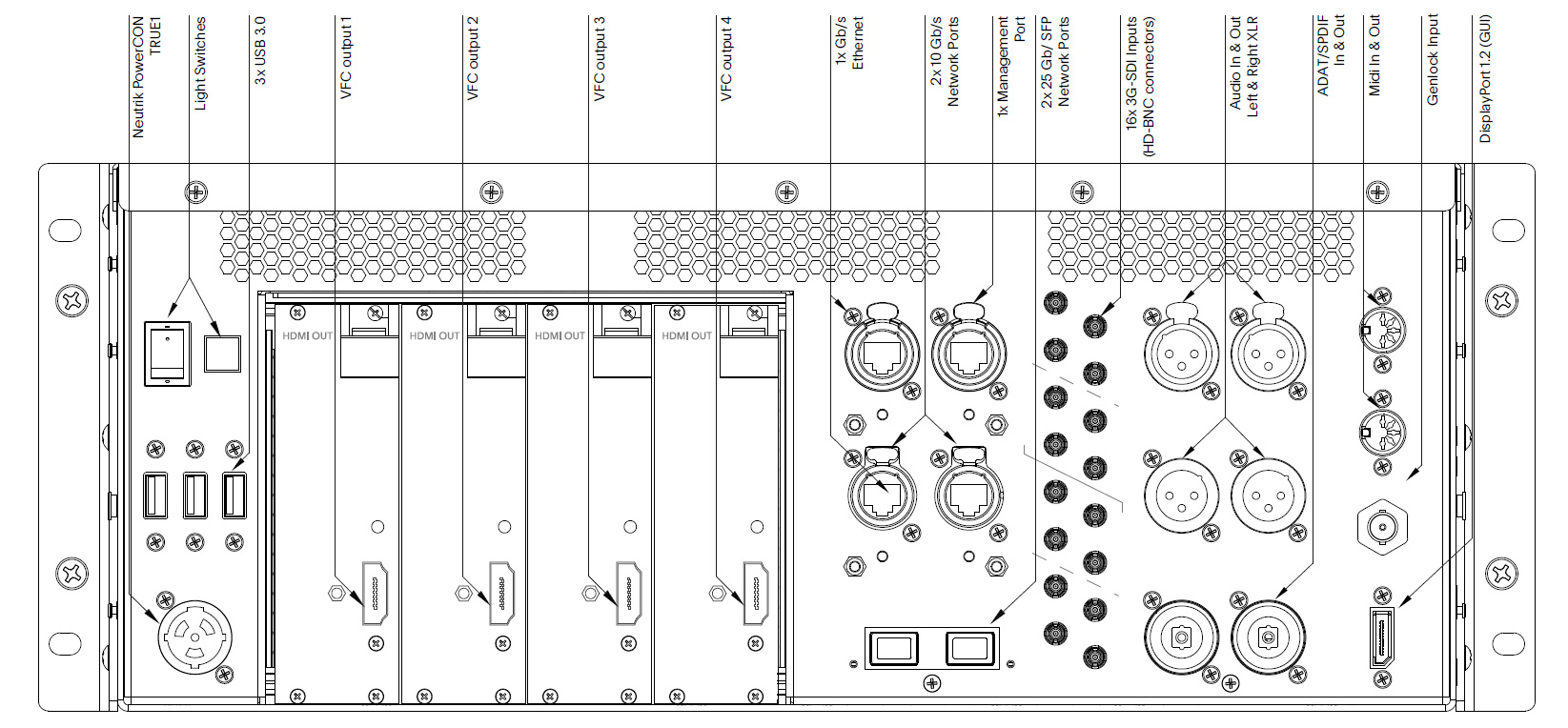

System connectivity I/O

Video Output:
1x Displayport 1.2 (GUI)
4x VFC Output Slots
Ships standard with HDMI 2.0 VFC cards
Different Video Format Conversion Cards also available, refer to VFC specifications

Video Input:
16x 3G-SDI or 4x 2160p60 (Quad Split)
(HD-BNC connectors)

Analogue Audio:
2x Balanced XLR Input
2x Balanced XLR Output
1x 1/4" Headphones Jack
Digital Audio:
ADAT/SPDIF I/O
MIDI:
1x In, 1x Out

General Network:
1x 1Gb/sec Ethernet
2x 10Gb/sec Ethernet

High Speed Network:
2x 25Gb/sec Ethernet

System Management Controller:
1x Management Port (Reserved for future use)

Data/Peripherals:
5x USB 3.0

Video Sync:
1x BNC Genlock
